Outdoor Micro Gateway (WAPS-232N)¶
Description¶
The Micro Gateway is specifically designed for wide area smart city applications. Applications include, but not limited to automatic meter reading, monitoring fault indicators, monitoring street lights, etc. Typical deployment is using star network configuration similar to mobile network base station. This product can be configured as last mile repeater to solve sensor connectivity issue when sensor is located at edge of the coverage or out of coverage. It’s a cost effective way to provide full redundancy coverage for the entire service area.
MAIN FEATURES¶
- NZ/AUS LoRaWAN™ compliant
- Compliance to LoRaWAN™ 1.0.2
- Up to 16 concurrent channels for LoRa transmission
- 3G/4G backhaul being supported
- Long range over 15 kilometers radius
- 1 LAN port (10/100Mbps) with PoE
- Cellular connection over 3G/4G
- Onboard GPS with external antenna
- Downlink LBT
- Cloud service to support easy deployment
- Patented repeater mode for last mile coverage
- Thousands to millions devices depending on data model
- Cost effective for providing full redundancy coverage
- IP67 waterproof
Design¶

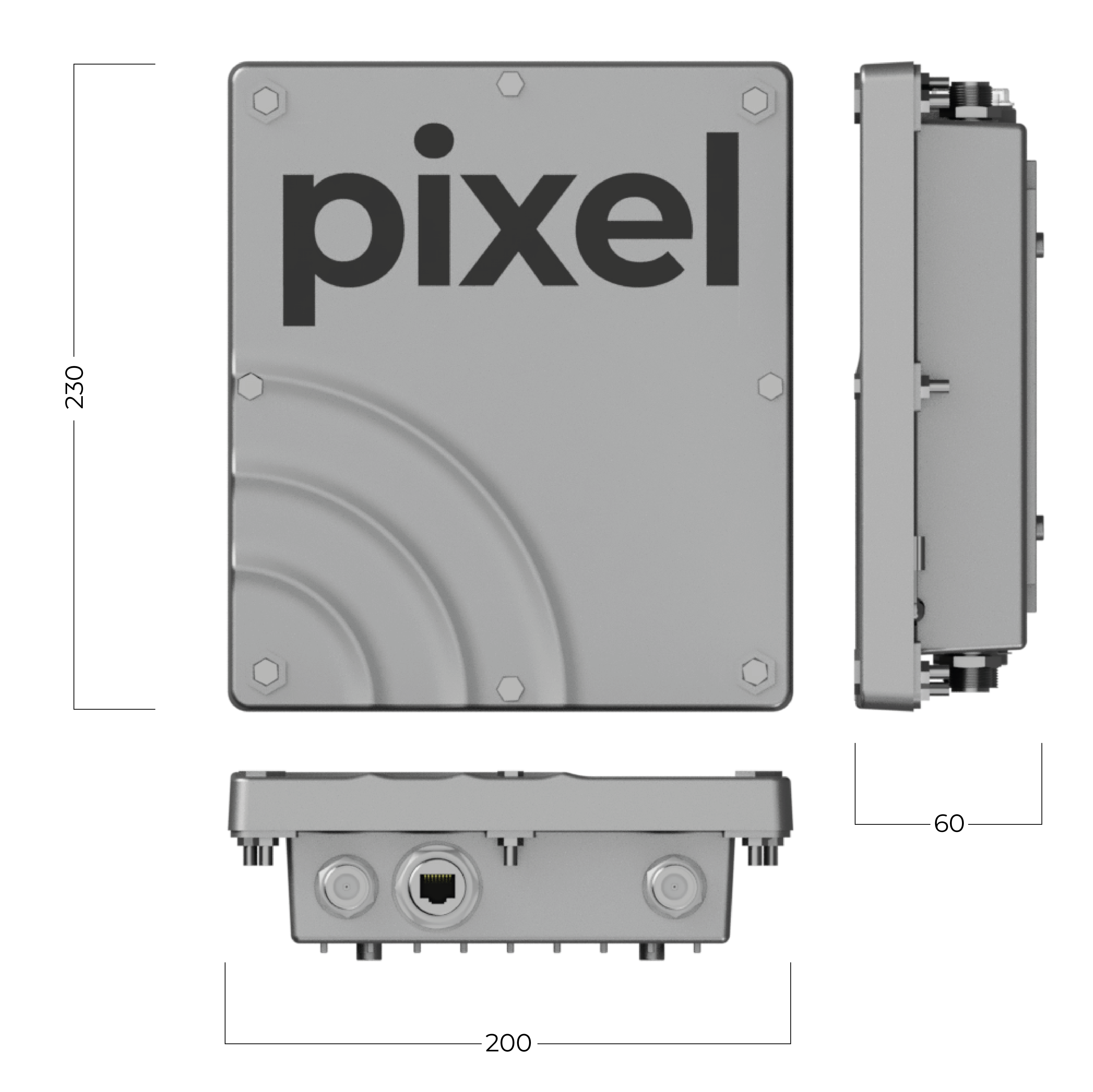

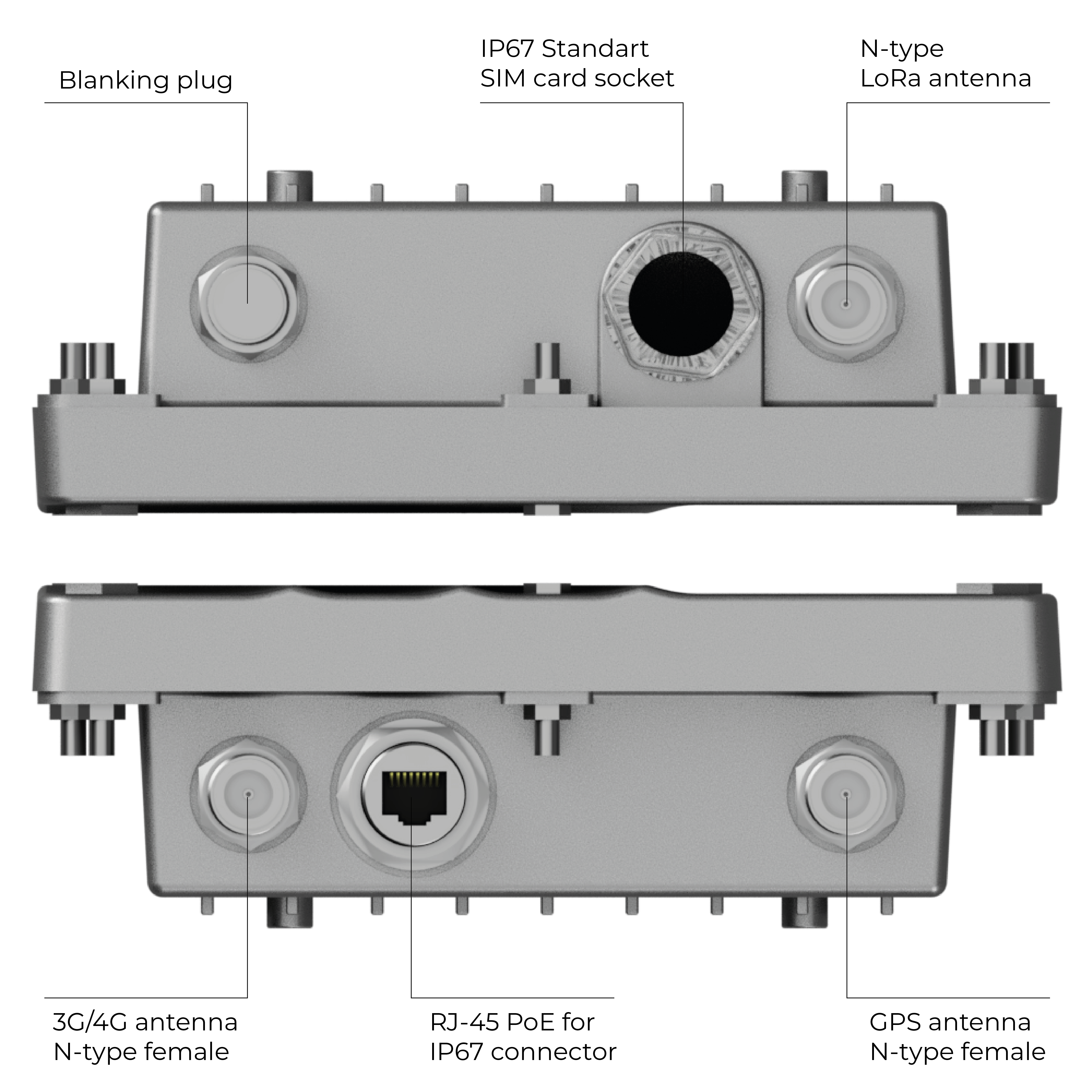

Outdoor Micro Gateway has a compact size of only: 230 x 200 x 60 mm, external LoRa, gps, 3g / 4g antennas are also connected to it.
Specification¶
| Parametr | Value |
|---|---|
| General | |
| Device Name | Outdoor Micro Gateway |
| Model | WAPS-232N/RUSRD |
| Manufacturer | Pixel Devices Ltd, Hong Kong |
| Functionality | |
| Device Type | LoRa Gateway |
| GNSS | GPS, GLONASS |
| GNSS antenna | External |
| LPWAN | |
| WAN Protocol | modul PixGW (1.0) |
| Frequency | RU864-870 MHz |
| Channels | 8 |
| Antenna Type | External (optional) |
| Antenna Gain | 3 - 12 dBi (optional) |
| Tx Power | 27 dBm |
| Rx Sensitivity | -142 dBm |
| Broadband | |
| Cellular | 3G/4G |
| Cellular Antenna Type | External |
| Ethernet | 10/100Mbps PoE |
| Power | |
| Source | 220V-55V AC/DC PoE Adapter |
| Input | 55 V |
| Current | 0.6 A |
| User Interface | |
| LEDs | 1 LED |
| Mechanical | |
| Size | 230 x 200 x 60 mm |
| Weight | 2.05 kg |
| Environmental | |
| Temperature Min/Max | -40 / +60 С |
| Operating Humidity Min/Max | 5 / 95 % |
| IP Rating | IP 67 |
| Features | |
| In the Box | Device, Mount Kit Ass'y, GPS Ant, RJ-45 Connector, RF Cabel, POE Adapter, Power Cord, Dipole Antenne 300mm, 824-960 MHz Ant. |
| Software | TrackStation |
| Certifications | |
| Certification | CE, RU Д-НК.ЛД04.В.03899 |
